Focusrite Red 16Line

The Focusrite Red 16Line is a high-quality, professionally designed 64x64 Thunderbolt 3 audio interface that integrates seamlessly with both Pro Tools | HD systems and Dante Audio-over-IP networks . With an impressive resolution of up to 24-bit/192 kHz and a dynamic range of 118 dB (AD) and 121 dB (DA), this interface delivers exceptional audio performance for the most demanding studios. The Red 16Line features two Red Evolution microphone preamps , digitally controllable with 63 dB of gain , switchable Air mode , high-pass filter, phase reset, and +48 V phantom power.

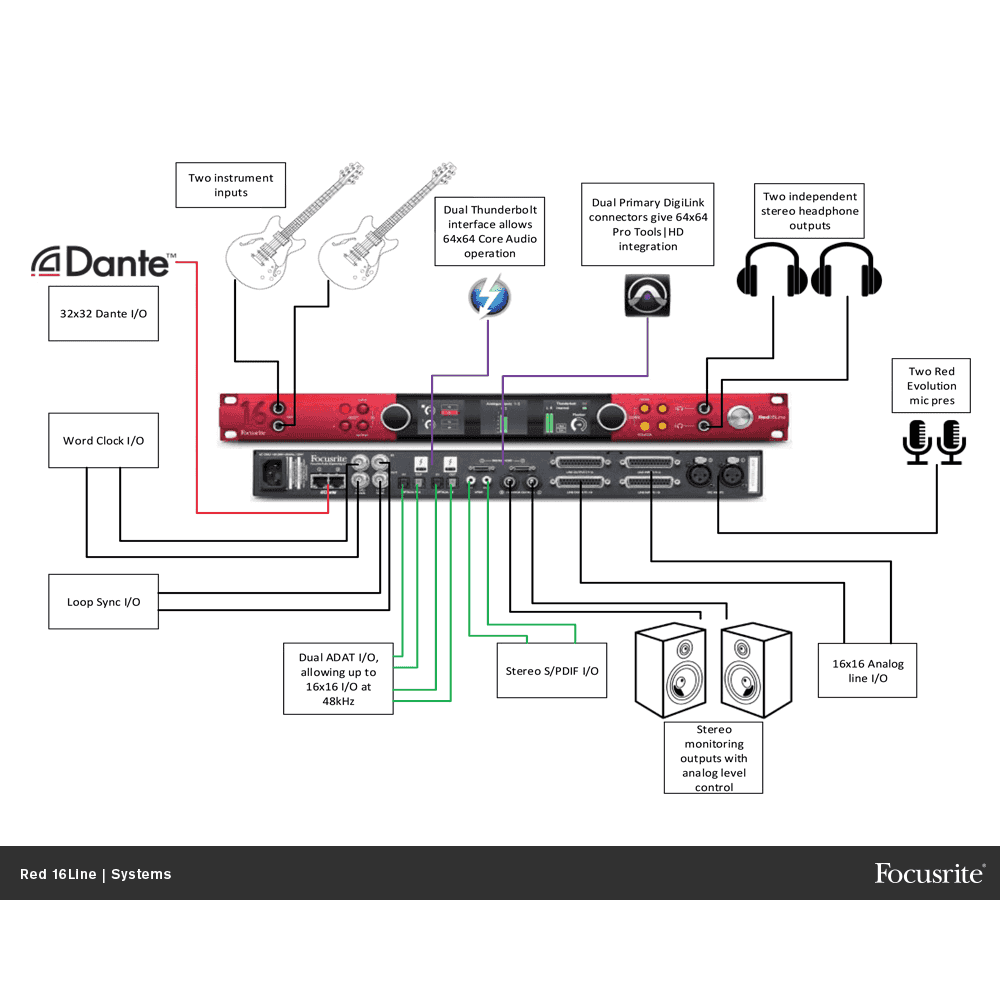

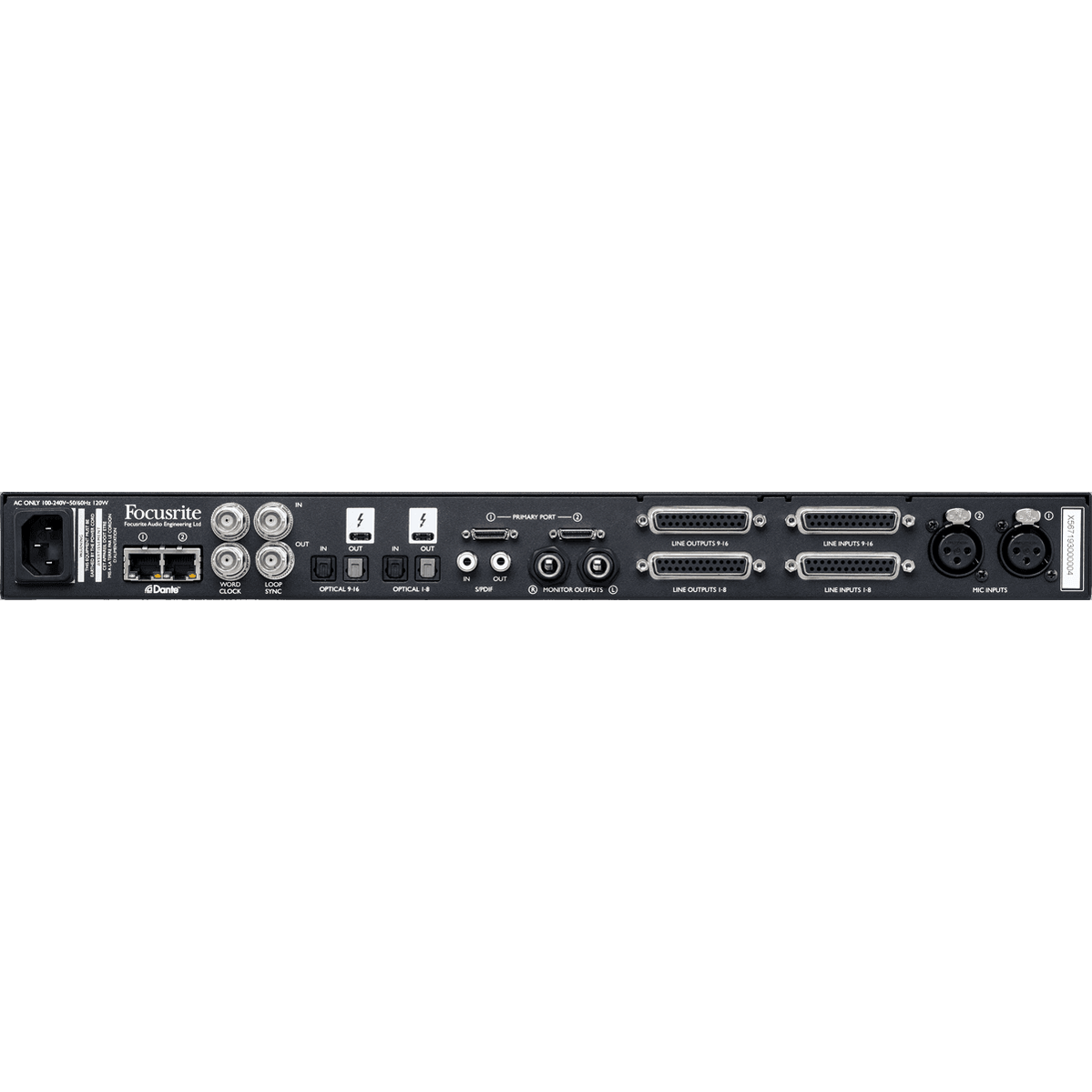

With 16 analogue line inputs and outputs via Sub-D25 , ADAT, S/PDIF, Word Clock , two Thunderbolt 3 ports , 2x Mini DigiLink for direct connection to Pro Tools | HD, and dual Dante RJ45 connections , the Red 16Line is built for maximum connectivity in complex workflows. The three OLED screens provide real-time insight into levels and system status. Including Focusrite Control software mixer and the Red 2 & Red 3 plug-in suite (AAX / AU / VST), this is the ideal interface for high-end recording studios, post-production and broadcast environments.

Specifications:

• Type: 64x64 Thunderbolt 3 Audio Interface
• Maximum resolution: 24-bit / 192 kHz
• Dynamic range:
• AD conversion: 118 dB
• DA conversion: 121 dB
• Microphone preamplifiers:
• 2 x Red Evolution preamps
• Gain: up to 63 dB
• +48V phantom power
• High-pass filter
• Phase reverse
• Air mode (switchable on/off)
• Audio connections:
• 2 x XLR microphone inputs
• 2 x 6.3 mm jack instrument/line inputs
• 16 x line inputs via Sub-D25
• 16 x line outputs via Sub-D25
• 2 x monitor outputs (6.3 mm jack)
• 2 x headphone outputs (6.3 mm jack)
• 2 x ADAT in & out
• 1 x S/PDIF coaxial in & out
• 1 x Word Clock in (BNC)
• 1 x Word Clock out (BNC)
• 1 x Loop Sync in (BNC)
• 1 x Loop Sync out (BNC)
• 2 x Dante (RJ45)
• 2 x Thunderbolt 3
• 2 x Mini DigiLink (Pro Tools HD)
• Recording/Playback: 64x64 simultaneous
• Bus-powered: No
• Power supply: Includes internal power supply (100–240V)
• MIDI Connections: None
• Size: 19" / 1U rack
• Dimensions (W x H x D): 483 x 44 x 340 mm
• Weight: 5.04 kg
• Windows support: Thunderbolt driver available

Included:

• Focusrite Control Software Mixer
• Red 2 & Red 3 Plugin Suite (AAX / AU / VST)
• Power supply
• 2x USB cable (USB-A and USB-C)

Included software – Hitmaker Expansion

• DAWs & Applications:
• Ableton Live Lite
• Pro Tools Artist (3 months)
• Splice Sounds (3 months)
• Plugins and virtual instruments:
• Antares Auto-Tune Access
• Softube Marshall Silver Jubilee 2555
• XLN Audio Addictive Keys
• XLN Audio Addictive Drums 2: Studio Rock
• Native Instruments MASSIVE
• Brainworx bx_console Focusrite SC
• Relab LX480 Essentials
• FAST Balancer
